Technical Camera Movements applied to Tilt-Shift lenses

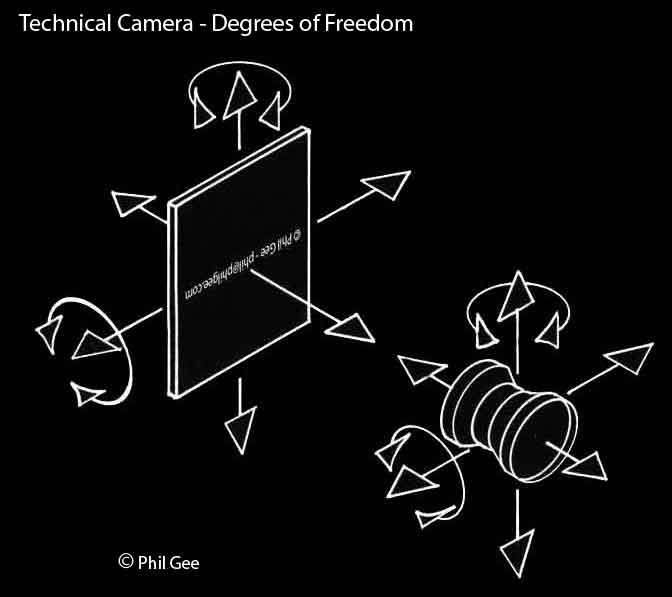

Tech Camera © Phil Gee



Nomenclature Technical Camera movement of Film and or Lens Standard

Rise and Fall - Vertical movement

Shift - Horizontal movement Left or Right

Tilt - Up or Down

Swing - Horizontal Left or Right

A number of Technical Camera manufacturers produced scaled down versions of their large format cameras to take advantage of the new Medium format Digital Backs in place of 6x6 and 6x4.5 film backs e.g. Sinar's P3, Cambo's



Cambo X2-PRO

In 2006 Cambo produced a hybrid "DSLR Technical Camera" that enabled the use of a range of Large Format and other lenses on a technical camera style of lens panel; that was able to achieve Rise and Fall + Shift + Tilt +Swing.

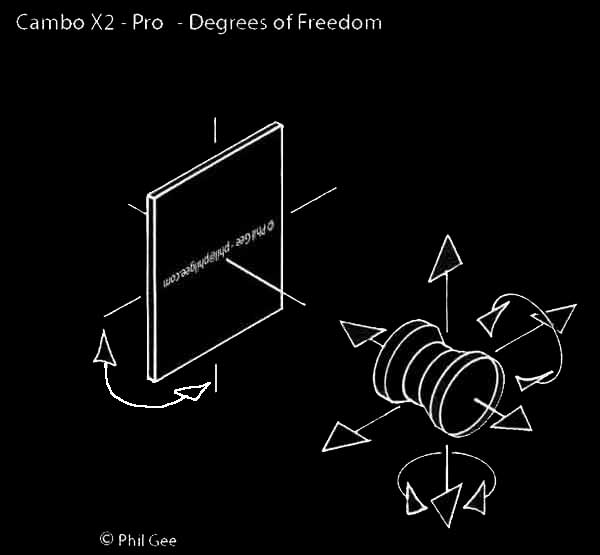

Cambo X2-PRO

For further information click on above graphic.

Whist it employed the Film/Digital back (body) of a DSLR which was held in a fixed position perpendicular to the optical axis, but could be moved 90˚ from Portrait to Landscape orientation and focusing could be achieved using the DSLR's Pentaprism and camera movements.

With the rapidly increasing pixel count of sensors, approaching film quality; this design enabled 35 mm DSLR users to gain more of the benefits reserved for Large Format users at a fraction of the price, without the bulk but it is not as compact as the DSLR-Tilt-Shift lens.



DSLR - Tilt - Shift lens

The DSLR Tilt-Shift Lens is an adaption of the movements normally associated with large format technical cameras to small and medium format cameras, you are able to move the lens along a plane parallel to the Film as well as angular movements about its nodal point (Swing and Tilt) The Film or Sensor remaining in a fixed position.

Not all camera manufacturers use the same arrangement but in all cases the Film or Digital Sensor is in a fixed position Tilt, Swing and Focusing movements are carried out within the lens mechanism which can be rotated through +90˚ -90˚ enabling Tilt to become Swing and Shift to become Rise or Fall

Lens movements for the Canon TS=E (Format 36x24mm) and Hasselblad HTS 1.5 (Format 48x36mm) are shown below.

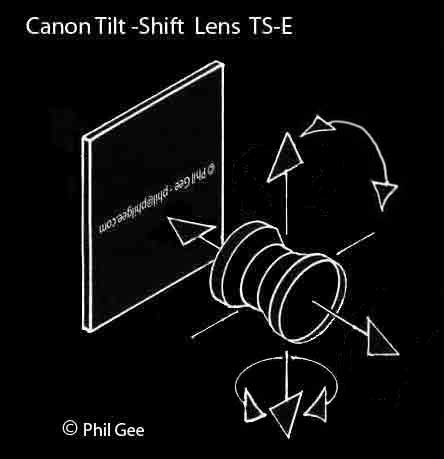

Canon Tilt-Shift lens movements © Phil Gee

For details of the Canon Tilt-Shift lens click on above graphic

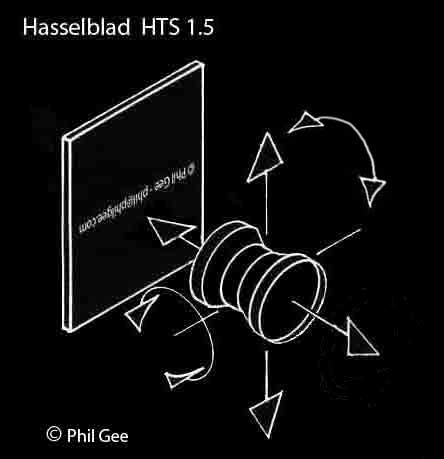

Hasselblad HTS © Phil Gee

For details of the Hasselblad TS 1.5 click on above graphic,

To keep the units compact the lens movements are limited to one Swing and one direction of Shift however the lens assembly can rotate so a Vertical Shift (Rise or Fall) can become a Horizontal Shift and a Horizontal Swing can become a Vertical Tilt (Swing is called Tilt when its Vertical ) by rotating the lens assembly.

Simultaneous Swing and Shift is possible but limited to only one direction of Shift.

Whist this is a limiting factor these Tilt-Shift lenses have enabled 35mm and Medium format DSLR users to gain some of the advantages of studio photography without the bulk of a Technical or Field camera.



TBC...





Shift





Whist it is good practice to use a tripod and bubble level to ensure film plane is vertical and horizontals true, acceptable results can be achieved by using a monopod or even hand held. A focus screen with a rectilinear grid is a fantastic help in keeping verticals, vertical.

You can apply perspective correction out of camera in Photoshop but if you are using 35mm digital cameras you are wasting pixels. Granted studios who used technical cameras for pack shots etc have been moving to post processing methods but they have down graded from 4x5 to medium format or 35mm with TS lenses.



Tilt (and Swing)

Whilst they are called Tilt-Sift lenses they Swing as well

Tilt is when you pivot the lens vertically and Swing when it is pivoted horizontally



The relative orientation of the 'film' plane to the subject determines the distortion of same on the 'film' plane, the movement of the lens determines coverage and depth of field

TBC...
